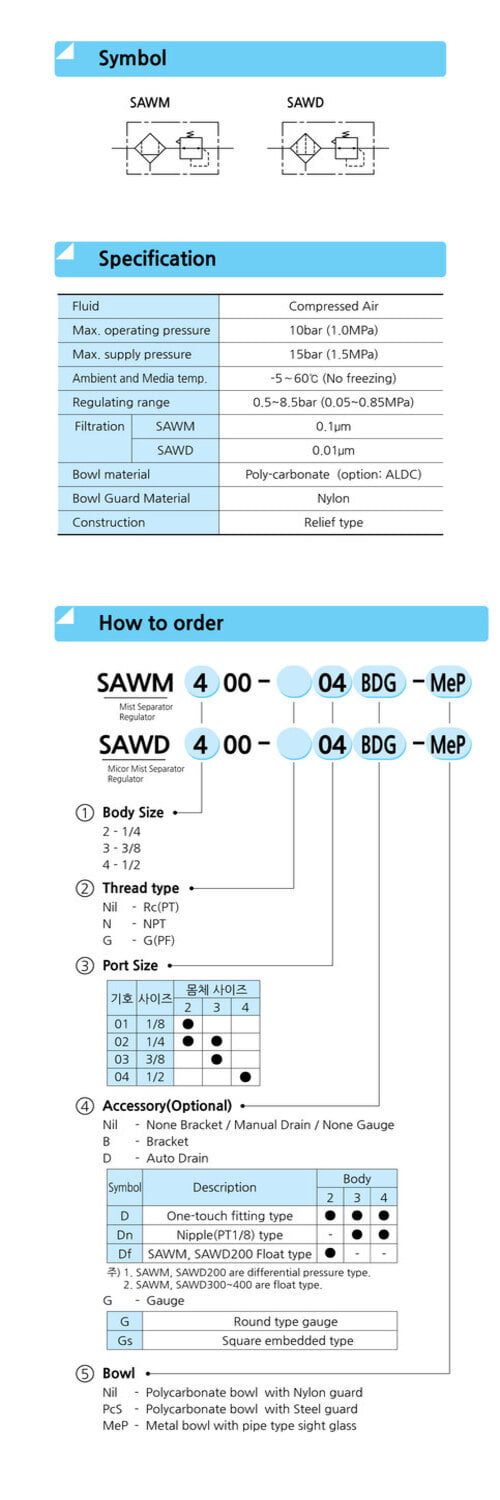

Thông số kỹ thuật
Precautions
- Set the outlet pressure range for the regulator in a range that is 85% or less of the inlet pressure. If set above 85%, the inlet pressure will be easily effected by fluctuations in the flow rate and inlet pressure, and will become unstable.
- To set the pressure using the knob, turn the knob in the direction that increases pressure and lock the knob after the pressure is set. If this is done in the direction that decreases pressure, the pressure may drop from the original set pressure. Turning the knob clockwise increases the outlet pressure, and turning it counterclockwise reduces the pressure.
- Residual pressure release (outlet pressure release) is not complete by releasing the inlet pressure. To release residual pressure, select a model with a back flow mechanism.
- When auto drain is used, drain piping should be both 4mm or greater in diameter and less than 1m in length. Avoid installing drain piping upwards.
- When auto drain is inoperable, drain manually by pushing the one-touch fitting upward.
Component Parts
No.
PARTS
MATERIAL
1
Body
ALDC
2
Cover
N66G
3
Diaphragm Ass’y
NBR
4
Check valve Ass’y
Brass, NBR
7
Bowl Ass’y 1)
PC
Replacement Parts
No.
PARTS
MATERIAL
Part no.
SAWM200
SAWD200
SAWM300
SAWD300
SAWM400
SAWD400
5
O-ring
NBR
U024
38×2
U137
6
Filter
–
WM200-EL
WD200-EL
WM300-EL
WD300-EL
WM400-EL
WD400-EL
